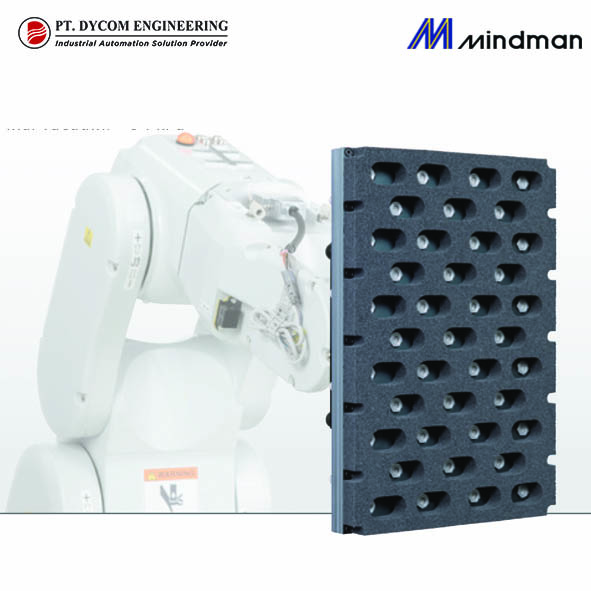

·         VMG

The suction surface is made of sponge (Rectangular ring shaped). Suitable for a wide range of workpieces. Vacuum generator built-in type and vacuum pump compatible type are available. Can be easily installed by sliding it in to the flange mounting plate that is fixed to the robot. Improved operability and safety.

·         HSP

Piping: side and top

For safety, optional protective cover, spring type ( -VPF ) and 2 finger parallel gripper ( -CHA / -CHB )

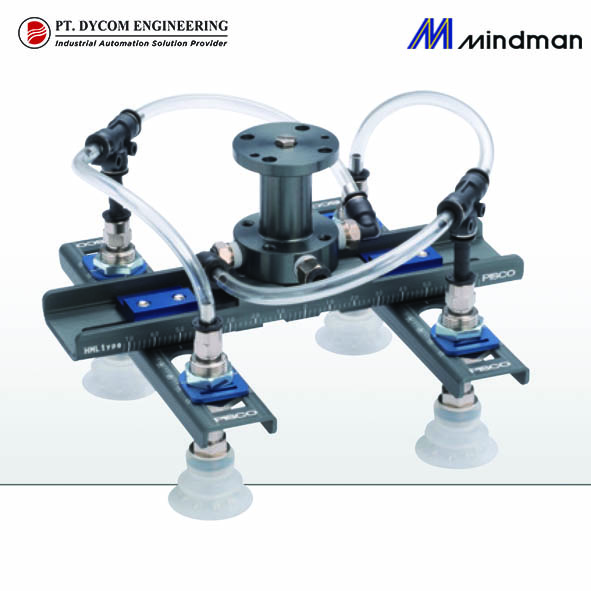

·         HML

Adjust max width: 144, 210mm (main lever) ,120~204 mm (pad lever)

Vacuum pad number: 4~16 pcs

·         HKU

With vacuum generator: VK series

Vacuum performance

H12 : High vacuum type ( supply pressure 0.5 MPa )

L12 : Large flow type ( supply pressure 0.5 MPa )

E12 : Low supply pressure high vacuum type ( supply pressure 0.35 MPa )

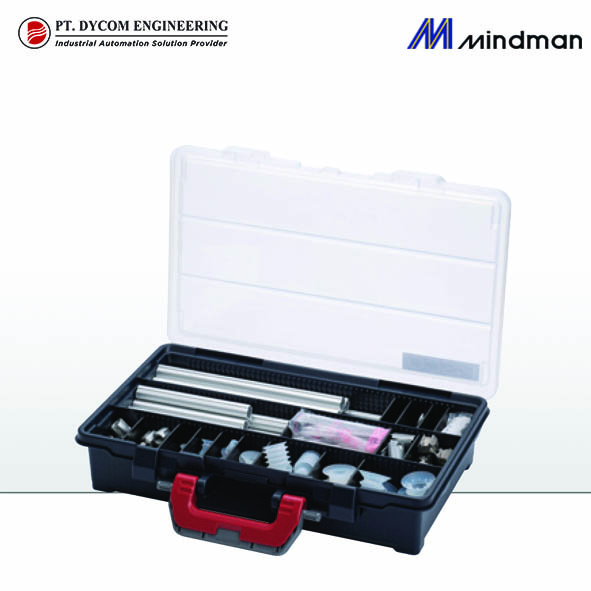

·         VPGFSKIT

This trial kit makes possible from the initial suction test to installation on EOAT (End of arm tooling).

Pad size: o2 ~ o50
