·         MCQA

Tube I.D. φ40, 50, 63, 80, 100, 125, 150, 200 (mm).  Designs of oil-filled alloy. special housing and bushing provide the needed self-lubrication of piston rod.

·         MCQA – AH

Tube I.D. φ 40, 50, 63, 80, 100, 125, 150 (mm).  Consider cylinder thrust force is about 70%(50% high speed) of theoretical force. Displacement is suggested about 50% of total volume.

·         MCQN

Tube I.D. 1 1/2”~4” (inch). Designs of oil-filled alloy.special housing and bushing provide the needed self-lubrication of piston rod. Hard anodized aluminum cylinder tubes resist corrosion and abrasion.

·         MCQV

Tube I.D. φ125, 160, 200 (mm).  Conformance to ISO 15552 specification. Unified design, most parts of each type are interchangeable among each other.

·         MCQV 3

Automatic air cushioning - Pneumatic cushioning at both ends without adjusting. Tube I.D. φ 32, 40, 50, 63, 80, 100 (mm).  Conformance to ISO 15552 specification. Unified design, most parts of each type are interchangeable among each other.

·         MCQV 3L

Tube I.D. φ 63, 80 (mm), Special housing and bushing enables self lubrication of piston rod, Conforms to ISO 15552 specification enabling worldwide interchangeability.

·         MCQV S

Tube I.D. φ 32, 40, 50, 63, 80, 100 (mm).  AISI 316 stainless steel. Fits the chemical, food and pharmaceutical environment. Conformance to ISO 15552 specification. Available with comprehensive internationally recognised range of fixed and flexible mountings.

·         MCQI 3

Automatic air cushioning - Pneumatic cushioning at both ends without adjusting. Tube I.D. φ 32, 40, 50, 63, 80, 100.  Conformance to ISO 15552 specification. Unified design, most parts of each type are interchangeable among each other.

·         MCB

Locking unit is a mechanical device to apply to cylinders ISO 15552 and 6432 whose scope is to block cylinder's rod in any position. This solution allows to block the race of the cylinder anytime takes place an unexpected fall of pressure.

·         MCBMI

Multi-specification:There are nine specifications: tube I.D.φ20, φ25. Application to hold state in the stroke range.

·         MCBQV

Tube I.D.φ125. Application to hold state in the stroke range. The brake function is bi-directional. It can hold on specific position by sensor switch.

·         MCBQV3

Tube I.D.φ 32, 40, 50, 63, 80, 100 (mm).  Application to hold state in the stroke range. The brake function is bi-directional. It can hold on specific position by sensor switch.

·         MCBQI3

Tube I.D.φ 32, 40, 50, 63, 80, 100 mm.  Multi-specification : There are six specifications. Application to hold state in the stroke range.

·         MHPD

Pressure boost model: 1T, 3T, 5T, 8T, 10T, The power cylinder combine booster and hydraulic cylinder. It only uses pneumatic control valve.

·         MCJA

Tube I.D. φ 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 (mm), Ultra Compact, light weight and space saving cylinder. Single and double acting available.

·         MCJA – 3

Tube I.D. φ 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 (mm), Ultra Compact, light weight and space saving cylinder. Single and double acting available.

·         MCJA – 4

Tube I.D. φ 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 (mm), Ultra Compact, light weight and space saving cylinder. Single and double acting available.

·         MCJQ

Tube I.D. φ 12, 16, 20, 25, 32 ,40, 50, 63, 80, 100 (mm), Ultra-compact, light weight, space-saving type.

·         MCJQ – 2

Tube I.D. φ 12, 16, 20, 25 (mm), Ultra Compact, light weight and space saving cylinder.

·         MCJQ – 3

Tube I.D. φ 12, 16, 20, 25, 32 ,40, 50, 63, 80, 100 (mm), Two-stage stroke: Two compact cylinders with same I.D. but different strokes length are connected to achieve two-stage stroke. Ultra Compact, light weight and space saving cylinder.

·         MCKJQ

Tube I.D. φ 12, 16, 20, 25, 32 ,40 (mm), Hexagonal rods for non-rotating rod feature. Anodised aluminum tubes provie better corrosion and abrasion resistance.  Stainless Steel rods for higher corrosion resistance.

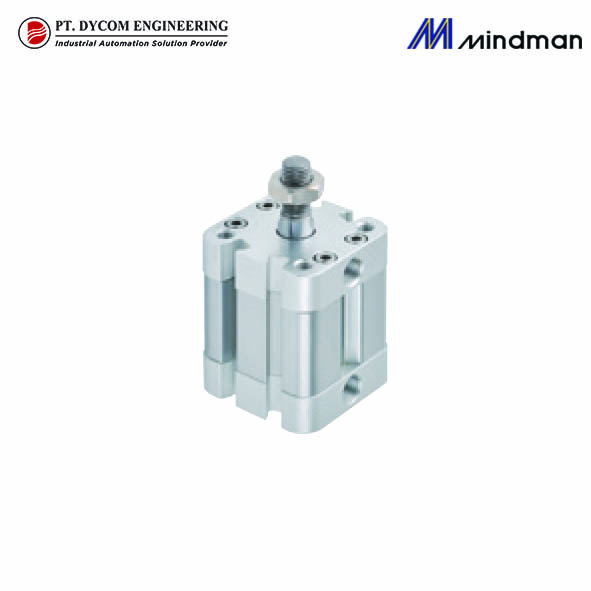

·         MCJI

Tube I.D. φ 20, 25, 32, 40, 50, 63, 80, 100 (mm). ISO 21287 standard. Wide range of bore sizes and strokes. Magnetic as standard.

·         MCJI – 3

Tube I.D. φ20, 25, 32, 40, 50, 63, 80, 100 (mm). ISO 21287 standard. Wide range of bore sizes and strokes. Magnetic as standard.

·         MCJU

Tube I.D. φ25, 32, 40, 50, 63 (mm), Plate type design for ultra compact, Oval piston design for non-rotation and space saving.
