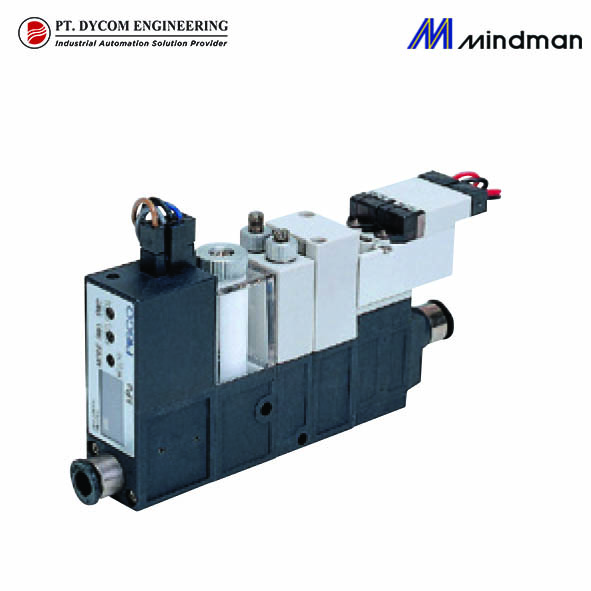

·         VJ

By newly adding pressure adjusting function to blow-off flow adjusting function, it enables to prevent works from being-blown away. Fluid medium:Air (JIS B 8392-1：Class1.2.1~2.4.3 compliant). Operating pressure range: 0.3~0.7 MPa.

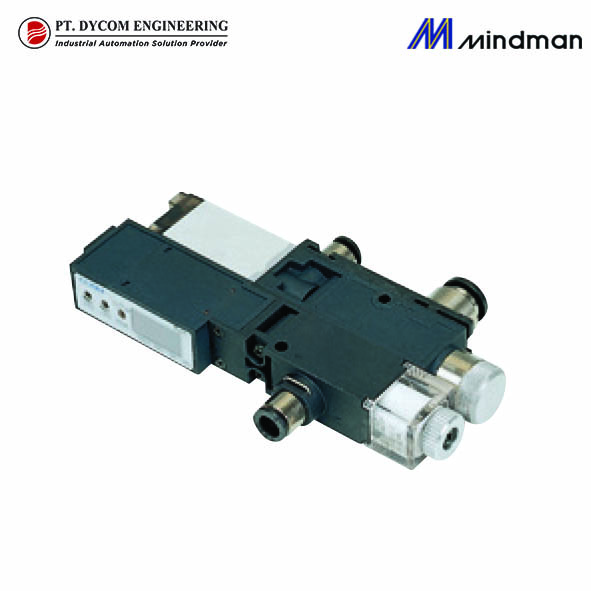

·         VK

Vacuum Generator VK serves customer's purpose most efficiently by selectable modularized unit combinations. Fluid medium: Air (JIS B 8392-1：Class1.2.1~2.4.3 compliant)
Operating pressure range: 0.25~0.7 MPa.

·         VX

The response characteristics of supply valve is maximized to realize a high-cycle vacuum system. Supply valves are of the normally closed type (always closed) and double solenoid type for energy saving (retention type). Fluid medium: Air. Operating pressure range: 0.3~0.7 MPa.

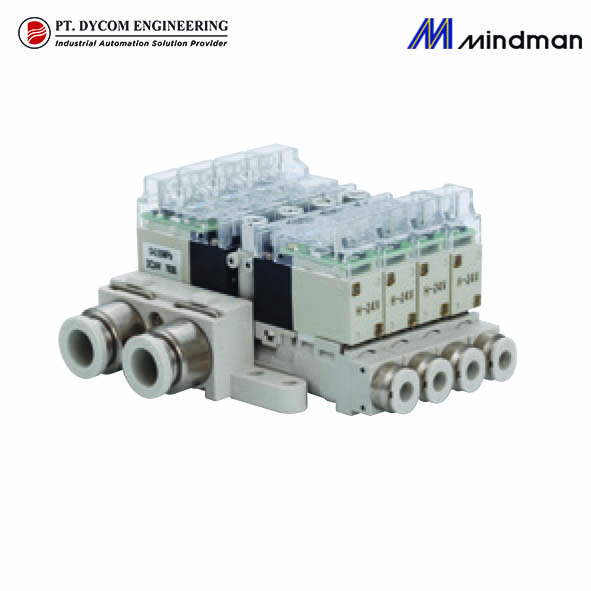

·         VN

Space-saving vacuum generator best suitable for high-speed and stable response. Fluid medium: Air, Operating pressure range: 0~0.55 MPa.

·         VQ

31.5 mm wide vacuum unit is designed to optimize the control of large vacuum flows. With the twin-nozzle type, the large nozzle controls vacuum generation from start up to a prescribed reference preset pressure level, after which the small nozzle takes over for maintaining a vacuum level for contributing reduction of air consumption. Fluid medium: Air, Operating pressure range: 0.3~0.7 MPa.

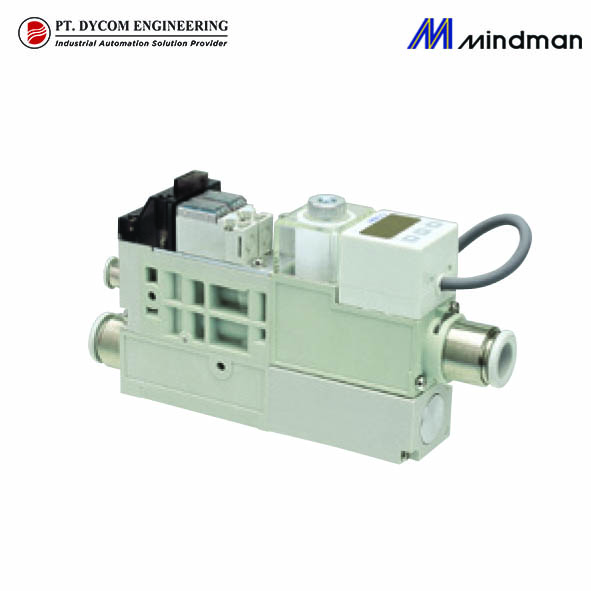

·         VQP

31.5mm wide vacuum unit is designed to optimize the control of large vacuum flows.

·         VJP

Pressure adjusting function is added to conventional blow-off flow adjusting function. It enables to prevent works from being blown away.

·         VXP

Wide variety of combinations enables to meet various applications. Complex vacuum generator VX Series is also available. Max. 10 mounting units in a manifold type.

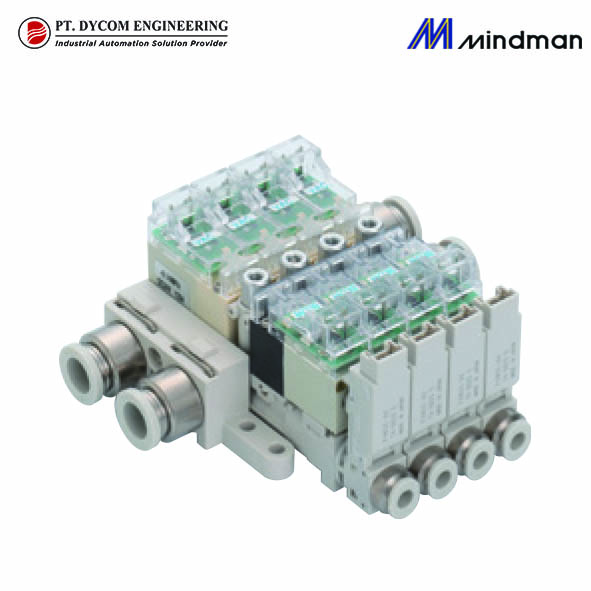

·         VNP

1.       Suitable for semiconductor industry such as IC chip loader or IC handler.

2.       Suitable for the application requiring a limited space.

3.       Compact and lightweight external vacuum controller. The body height is lowered in particular.

4.       High-speed response time (ON / OFF = 5msec or less). Direct operated solenoid valve is used for the main valve.

5.       Four types of analog output type sensor are prepared.

·         VZP

1.       Small in size and lightweight. External vacuum controller with bundled wiring dedicated to manifold mount.

2.       The electricity of valve lower to 0.55W in order to save energy.

3.       Easy to maintain.

4.       Various kinds of vacuum sensors for wide range of applications.
