·         VP-F

Holder: Fixed type, spring type. Cup: Flat type.

Optimal for transporting thin work pieces such as sheets or vinyl and contributing to reduce deformation and wrinkling of work pieces.

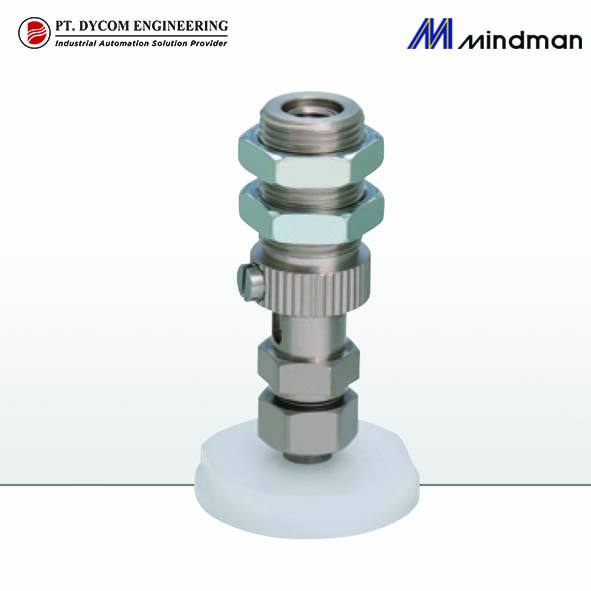

·         VP-Q

Holder: Fixed type, spring type. Cup: Mark-free type.

Best suitable for transporting LCD and transportation in painting and semiconductor manufacturing process.

·         VP-S

Holder: Fixed type, Spring type. Cup: Sponge type.

Best suitable for work with uneven surface such as an external wall material of building, small stone and seashell.

·         VP-E

Holder: Fixed type, Spring type, Screwed type. Cup: Oval type.

Best suitable for substrate or long work like semiconductor.

·         VSPE

Pad: Soft type. Pad material: Nitrile rubber, Silicon rubber, Fluorosilicon rubber.

Only supplying compressed air, work piece will be held and raised under suction.

·         VT

Fluid medium: Air. Operating pressure range: 0.15~0.7 MPa. The Air Pincette, incorporating a Vacuum Pad and Vacuum Generator in the pen-shaped body, serves well in the assembly operation of small parts.

·         ECV

Fluid medium: Air, Operating pressure range: Positive pressure: 0 ~ 0.7MPa, Negative pressure: 0 ~ -100kPa.

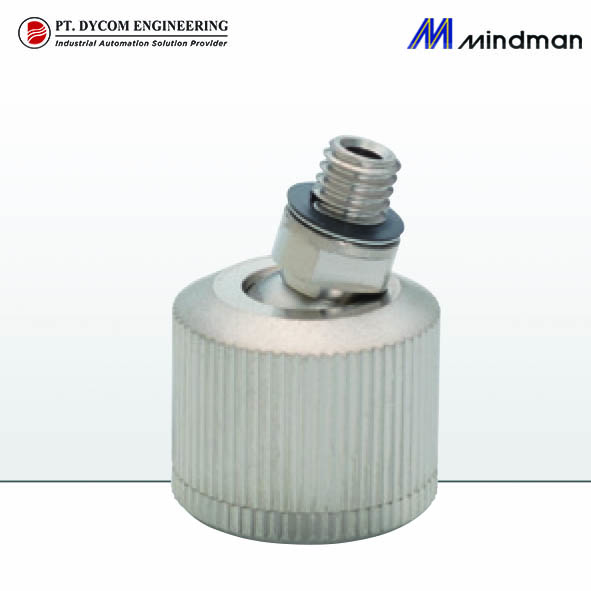

·         FH

Suitable for picking up work-pieces with non-vertical position or with unfixed angle.

·         VFF

Fluid medium: Air, Operating pressure range: -100~0 kpa.

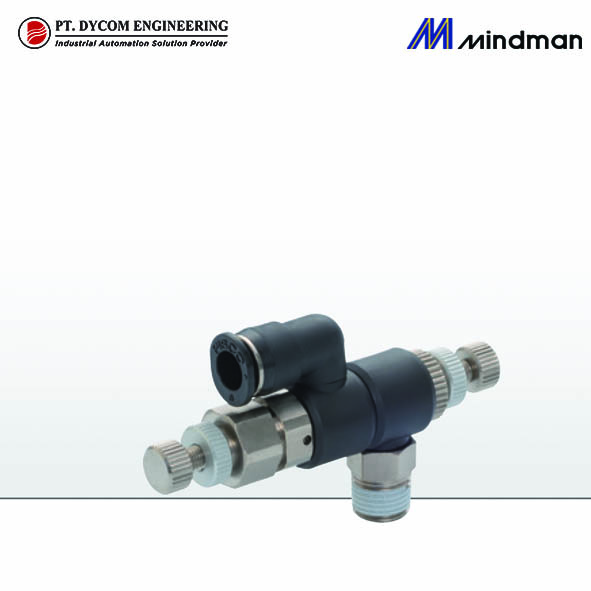

·         VLF

This unit adjusts the vacuum release air retaining vacuum generators' vacuum characteristics as they are. ( Flow control and release pressure control). Fluid medium: Air, Operating pressure range: 0~0.7 MPa, Relief valve activation pressure setting range: –0.015~0.015 MPa.
