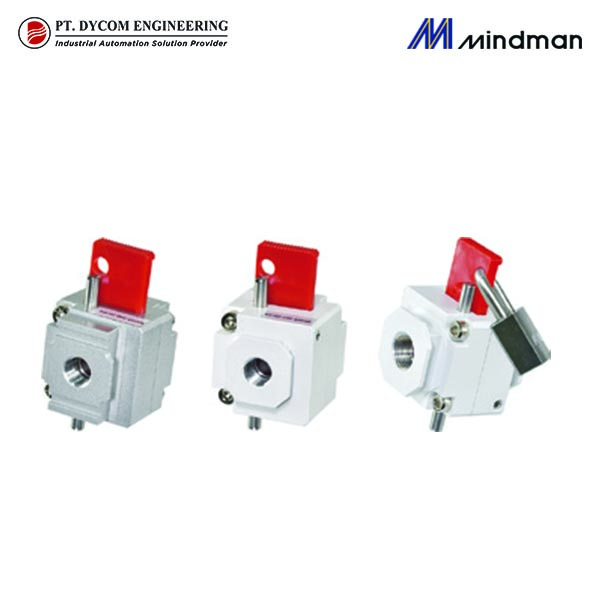

·         MVHT

Port size: 1/4, 3/8, 1/2, Operating pressure range: 0~1.5 MPa,Ambient temperature:－5~＋60℃(No freezing).

·         MVHR

Port size: 1/4, 3/8, 1/2, Operating pressure range: 0~1.5 MPa,Ambient temperature:－5~＋60℃(No freezing).

·         MVFA

Port size: 1/4, Operating pressure range: 0.2~0.7 MPa, Ambient temperature:－5~＋60℃ (No freezing).

·         MBS/MBD/MCS

2-way normally closed solenoid valve, Available fluid: Air, gas, water, vacuum, oil etc. Port size: 1/8", 1/4".

Bore size        : MBS:03(1/8),06(1/4)
                           MCS:06(1/4),10(3/8),15(1/2),20(3/4)
                           MBD:06(1/4),08(1/4),09(3/8),10(3/8),15(1/2)

Orifice (mm) : MBS:1~2.4
                           MCS:1.6~10
                           MBD:1.6~5.5

·         MCT

Forged brass body, 3/2 way N.C. Available fluid: Air, gas, water, vacuum, oil etc.Pipe: G1/4, G3/8, G1/2, G3/4.

·         MEP

Forged brass body, pressure forming S.S. plate, for water. air, Port size: 3/8", 1/2".

·         MGA

for water. air and higher temp. Forged brass body, IP65 100% ED coil, PTB approval EExmIIT4 coil, Port size: 3/8"、1/2".

·         MGS

for steam and high temp. Forged brass body, IP65 100% ED coil, PTB approval EExmIIT4 coil, Port size: 3/8"、1/2".

·         MJS

IP65 100% ED coil.PTB approval EExmIIT4 coil.For air. water. gas. oil. vacuum (10-3 torr).

·         MED

Forged brass body, pressure forming S.S. plate, for water. air, Port size: 1/4", 3/8", 1/2", IP65 waterproof coil.

·         MGD

Forged brass body, N.C., for water, air, gas etc. IP65 100% ED coil. EExmIIT4 PTB approval coil. Port size: 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2".

·         MJT

Brass body, 3/2 way N.C. actuator valve.For air. water. gas. oil. vacuum (10³ torr).

·         MRJ

Brass body, 3/2 way N.O. actuator valve.For air. water. gas. oil. vacuum (10^-3 torr).

·         MRB

Mini brass body, 2/2 way N.O., for water. air. gas. light oil. IP65 100% ED coil. PTB approval EExmIIT4 coil. Port size: G1/8, G1/4.

·         MRC

Brass body, 2/2 way N.O., for water. air. gas. light oil. IP65 100% ED coil. PTB approval EExmIIT4 coil. Pipe: G1/8, G1/4, G3/8.

·         MUCL

2/2 way n.c. plunger type latch valve, SUS303 Body, Body, Port size : 1/8"、1/4", For water, air, gas, light oil (below 50cst) etc.

·         MUPH

2/2 way n.c. diaphragm type solenoid valve, PTFE / PVC Body, stick PTFE on the rubber diaphragm, Port size :1/4"、3/8"、1/2"、3/4",  for corrosive Fluid. 2/2 way N.C.

·         MUSC

2-way normally closed solenoid valve, 303 S.S. Bar body, for water, air, gas, oil, vacuum. Pipe: G1/4, G 3/8.

·         MUST

303 S.S. Bar body, 3/2 way N.C., N.O.,for water, air, gas, light oil, vacuum (10^-1 torr Max.). Pipe: G1/8, G1/4, G3/8.

·         MPD

PAD (Nylon) body, N.C., O.P.D. 0.2 bar, PAK (Nylon) body, N.C., O.P.D. 0 bar, for water, special fluids etc. Port size: 1/2", 3/4", 1".

·         MPK

PA (Nylon) body, N.C., O.P.D. 0 bar, for water, special fluids etc. Port size: 1/2", 3/4", 1".

·         MUSD

SCS14 body, 2/2 way N.C. Available fluid: Air, gas, water, light oil. Port size: 1/2".

·         MUSL

2/2 way n.c. diaphragm type latch valve, SCS14 S.S. body, #304 cover, Port size : 1/2", for water, air, gas, light oil. 2/2 way N.C.

·         MUSK

2/2 way n.c. pilot diaphragm type solenoid valve, SCS14 S.S. body, #304 cover, Port : 15 (1/2)

·         MUT

Forged brass body, 3/2 way N.C., N.O.,for water, air, gas, light oil, vacuum. Port size: 1/8", 1/4", 3/8".

·         MWA

IP65 waterproof coil Ex coil is EExmⅡT4 PTB approval. Port size: 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2".

·         MWH

IP65 waterproof coil Ex coil is EExmⅡT4 PTB approval. Port size: 3/8"、1/2"、3/4"、1"、1 1/4"、1 1/2"、2".

·         MWD

Forged brass body, 2/2 way N.C. Available fluid: Air, water, gas. Port size: 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2".

·         MWS

IP65 waterproof coil Ex coil is EExmⅡT4 PTB approval. Port size: 3/8"、1/2"、3/4"、1"、1 1/4"、1 1/2"、2".
