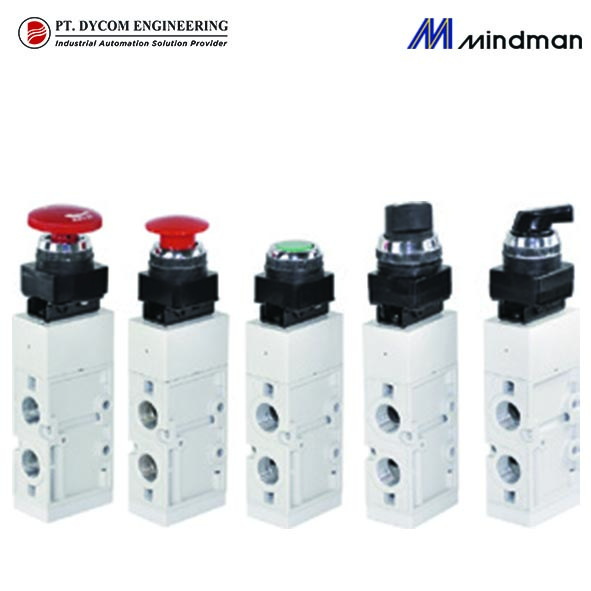

· MVMB – 220
Port size: 1/4, Operating pressure range: 0.15~0.8 MPa, Ambient temperature:－5~＋60℃(No freezing).
· MVMB – 250
Port size: 1/4, Operating pressure range: 0~1 MPa, Ambient temperature:－5~＋60℃(No freezing).
· MVMB – 300
Port size: 3/8,Operating pressure range: 0.15~0.8 MPa, Ambient temperature: －5~＋60℃(No freezing).
· MVMC – 210
Port size: 1/8, 1/4, Operating pressure range: 0~1 MPa, Ambient temperature:－5~＋60℃(No freezing).

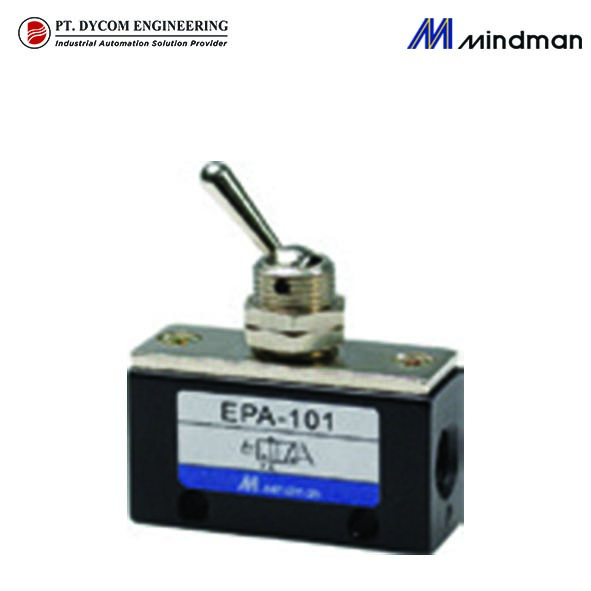

· EPA 100 – 109
No. of port:3, Bore size: Rc1/8, Operation pressure range: 0~0.9 MPa, Ambient temperature:－5~＋60℃ (No freezing).
· MVHF – 2P – NC
Normally CLOSED 2-way poppet,Input pressure:150 psig max.
· MVHF – 3P – NC
normally CLOSED 3-way poppet,Input pressure:150 psig max.
· MVHF – 3P – NO
Normally OPEN 3-way poppet,Input pressure:150 psig max.

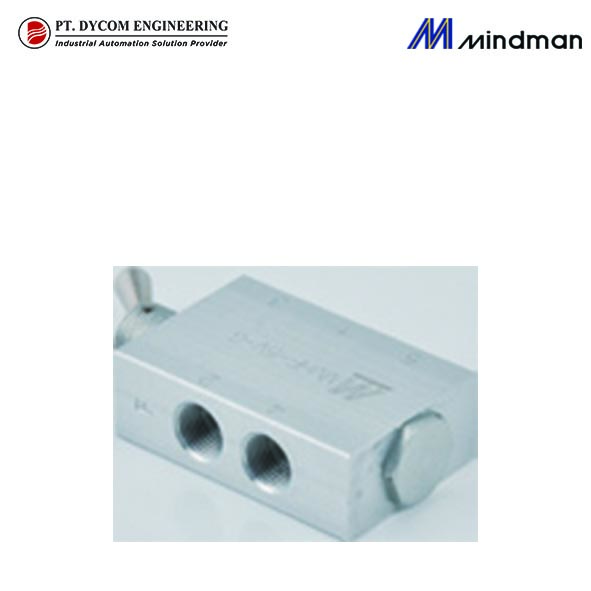

· MVHV – 3V
Normally CLOSED 3-way poppet two position toggle valve,Input pressure:150 psig max.
· MVHV – 5V
4-way spool valve toggle actuated two position 5 ported,Input pressure:150 psig max.
· MVHV – 5P
4-way spool valve plunger actuated spring return fully ported,Input pressure: 150 psig max.
· MVHA 1 – 4
Port size : M5 × 0.8,Operating pressure range : 0 ~ 0.9 MPa, Ambient temperature: -5 ~ + 60 ℃ ( No freezing ).
· MVHA 31 – 41
Port size : 1/8,Operating pressure range : 0 ~ 0.9 MPa, Ambient temperature: -5 ~ + 60 ℃ ( No freezing ).
· MVHA – 34T
The 34T Operator may be used with any TAC series push-button valve to provide easier actuation. Materials : Nickel-plated steel.
· MVHA – 34C
The 34C Operator Cam-stroke is two times by the valve's push-stroke.Adjustment of roller height is made through the use of a mounting bracket and Locknuts.
· MVHA – 34CW
The 34CW Operator actuates valves when the pawl is contacted from lever side. The pawl then folds out of the way in the opposite direction.
· MVHA – 34A
The 34A Operator threads directly onto the collar of push-button valves.The air pressure applied to the pilot port drives piston to actuates the valve's push-button.
· MVHB – 220
Port size: 1/4, Operating pressure range: 0~0.8 MPa, Ambient temperature:－5~＋60℃ (No freezing).
· MVHB – 260
Port size: 1/4, Operating pressure range: 0~0.8 MPa, Ambient temperature: －5~＋60℃(No freezing).
· MVHB – 300
Port size: 3/8, Operating pressure range: 0~1.2 MPa, Ambient temperature:－5~＋60℃(No freezing).
· MVHB – 500
Port size: 1/2, Operating pressure range: 0~1.2 MPa, Ambient temperature: －5~＋60℃ (No freezing).

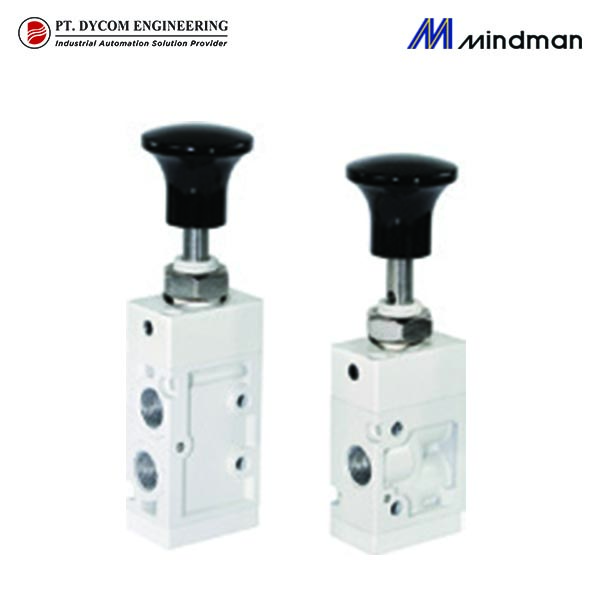

· MVHD – 220
Port size: 1/8,1/4, Operating pressure range: 0~0.8 MPa, Effective orifice: 18 mm2.

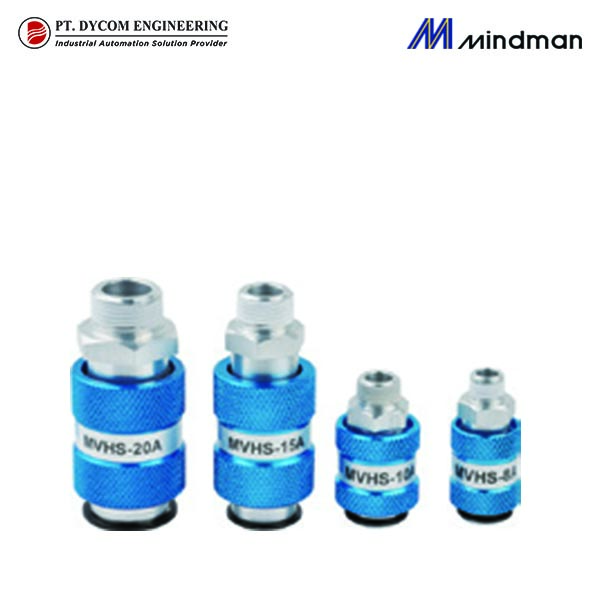

· MVHS
Port size:R1/4, R3/8, R1/2, R3/4, Operating pressure range: 0.05~1 MPa, Ambient temperature:－5~＋60℃(No freezing).
· MVHC
Port size: 1/8, 1/4, 3/8, 1/2, 3/4, Operating pressure range: 0.05~1 MPa,Ambient temperature: －5~＋60℃(No freezing).
