3. Magnet Separator Series

Download PDF (1.846,2 Kb)

---

Features: Fine contaminants mixed in fluid cohere and settle while flowing through our unique active magnetic field. It functions semi permanently, and therefore zero running cost. Maintenance Free for a long time. Suitable for both water soluble and oil based fluid.

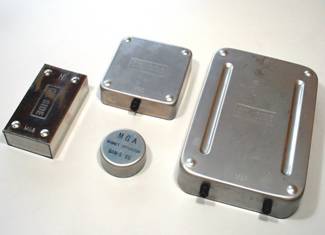

Model	MGR200	MGD100	MGB110	MGB160	MGB210	MGB260	MGA
Article nr.	23500	23520	23530	23531	23533	23532	23540
Materials	Surface and side: SUS304 Bottom: Epoxy resin Built in magnet: Strontium ferrite Bolt: SCM3
Dimensions WxLxH mm	200x140x40	100x100 x30	110x61x27	160x61x27	210x61x27	260x61x27	54xH20
Weight: kg	3.8	1.2	0.7	1.0	1.6	1.7	0.2
Tank capacity	100~150L	70~90L	30~40L	40~50L	50~60L	60~70L	20~30L
Temp limit	80°C	80°C	80°C	80°C	80°C	80°C	80°C

Accessory :	Holder	SUS case
	Holder for easy handling &removing, and SUS case for easy cleaning.













Please do not put it on the vicinity of the return piping and the suction piping.
Please set it up in the vicinity of the position of the middle of the passage.



Order-made Magnet barrier systems suitable to your coolant tank capacity!



Magnet barrier systems
[ Layout Example: MGB210 & MGD100 combination fixed at the bottom of the tank ]









* Components

MGB210, SUS case

MGD100, SUS case

SUS Stand



Applications: Surface Grinders, Cylindrical Grinders, Form Rolling machines, Shaving, etc.
