A Low Cost but powerful static eliminator that rapidly removes static charge and cleans.

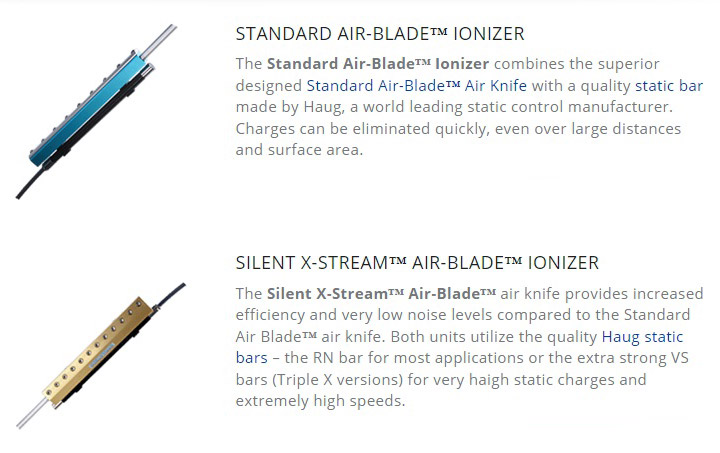

The Standard Air Blade™ Ionizer combines the superior designed
Standard Air Blade™ Air Knife the quality
Haug static bars
– the RN bar for most applications or the extra strong VS bars (Triple X
versions) for very high static charges and extremely high speeds. The
standard Air-Blade™ Air Knife uses slightly more compressed air than the
Silent X-Stream™ Air Blade™
and has a higher sound level but still produces a powerful, and
adjustable force with “laminar” flow to eliminate charges in
applications where static bars cannot reach or where high speeds are a
factor.
FEATURES
- Connections on the back or ends
- It flows from end to end (full flow).
- Stainless steel models are available for high temperature and corrosive models.
- Models are designed for easy cleaning and prevention of dirt entering the static bar, minimizing potential damage.
- Patented connectors with the ground intrinsic to the cable design.
- Instant ON/OFF with no moving parts.
- Repairable Power Supply with a two year warranty.
BENEFITS
- Flexible mounting options.
- Units can be mounted end to end for longer lengths with no air gap.
- High temperature, extra strength, and even a unique washable
stainless steel model is available for special applications or as
required.
- Ease of cleaning and maintenance.
- No separate ground connection that can be cut and cause sparks or accidentally shock personnel.
- Conserves air use when not required.
- Eliminates one costly area which is power supply replacement. 2 year warranty assure quality product.
Power Supplies
Static Elimination Air-Blade™ Ionizer power supplies are available
in various models including a unit that will monitor the static bars
for effectiveness.
| Voltage |
Model
Number |
Description |
| 110V |
ENC-110/2 |
Two outlet (Can connect two static bars) |
| 220V |
ENC-220/2 |
Two outlet (Can connect two static bars) |
| 110V |
ENC-110/4 |
Four outlet (Can connect four static bars) |
| 220V |
ENC-220/4 |
Four outlet (Can connect four static bars) |
| 110V |
Multistat 110 |
Four outlet (Can connect four static bars, plus monitors performance. Can be connected into a system alarm or indicating light.) |
| 220V |
Multistat 220 |
Four outlet (Can connect four) |
