Superior designed Air Jets reduce compressed air consumption and noise
levels while maintaining laminar flow for strong blowoff. Air Jets
entrain large volumes of surrounding air through the Jet (similar to Air
Amplifiers) and are more efficient than Air Nozzles. They cover a
larger blowoff target than a Nozzle and ideal especially for part
ejection.All Nex Flow™ Air Jets meet OSHA standard CFR 1910.242(b) for dead end
pressure. Noise levels are dramatically reduced with Air Jets in
addition to lower energy use.
APPLICATIONS
- Part cleaning
- Chip removal
- Part drying
- Part ejection
- Air assist
ADVANTAGES
- Reduced compressed air cost
- 10 dBA average noise reduction
- Conserve compressed air
- Compact
- Improved safety
- Meets OSHA noise level requirements
- Improved production

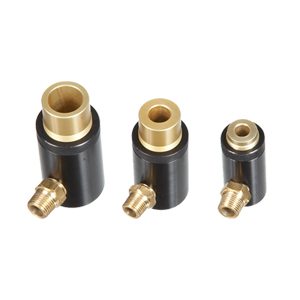

The Nex Flow™ High Force Air Jet is also a High Velocity Air Jet.
All the air jets are adjustable. With an Adjustable Air Jet the flow and
force can be set and “locked” in place with the lock ring for your
particular application.

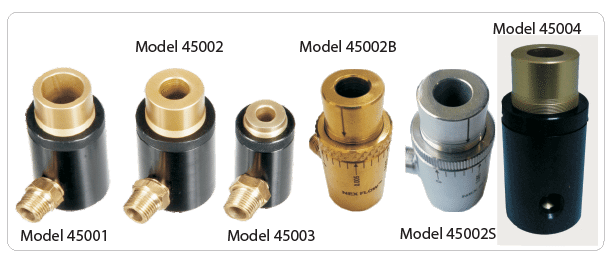

From Left to right is the High Flow Air Jet (Model 45001) the High
Force Air Jet (Model 45002) and the Mini Air Jet (Model 45003)

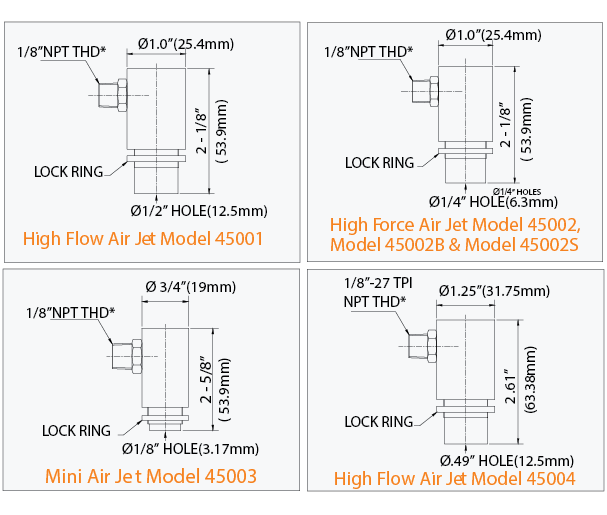

Model 45001/45002 – High Flow Air
Jet and High Force Air Jet are physically the same size. The only
difference is a larger exit opening in the High Flow version for the
amplified air flow. The high flow system is used more for cooling and
light blow-off while the high force version is used mainly for heavier
blow-off applications.
Model 45002B – High Force Air Jet in brass. The gap can be set
and locked into place. The gap setting value is marked on the air jet
body for accurate setting. Ideal for heavy blow-off applications
Model 45002S – High Force Air Jet in 316L Stainless Steel. The
gap can be set and locked into place. The gap setting value is marked on
the air jet body for accurate setting. Ideal for high temperature and
for food service heavy blow-off applications.
Model 45003 – Mini Air Jet is the most compact air jet with high
force, is adjustable and ideal for tight spaces. This is unique to Nex
Flow™ and there is no equivalent competitive system.
Model 45004 – Fat Air Jet Air Amplifier is the largest flat
jet/smallest air amplifier with the same design as the high performance
air jets to give you the most optimal performance with an adjustable gap
and lock ring to set the gap in place.
