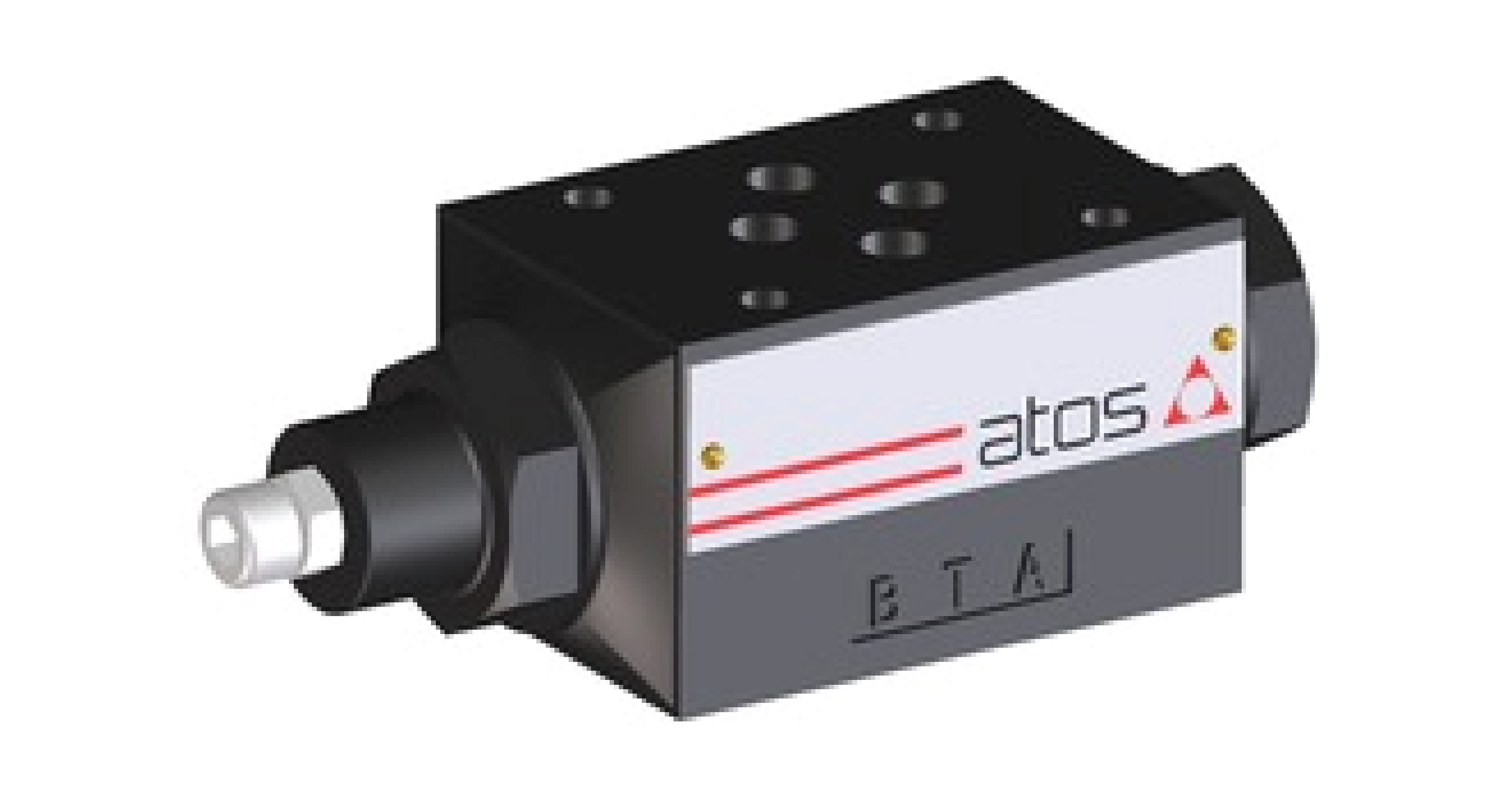

HQand SKQare flow throttling valves,not compensated, and with check valveto allow free reverse flow.The flow adjustement is performed by tur-ning the setting screw.Clockwise rotation increases the throttling(passage reduced).Valve size and max flow:
SHQ-0= size 06,
flow up to 80 l/min SKQ-0= size 10,
flow up to 160 l/minMounting surface:ISO 4401 size 06 and
10 Max pressure: 350 bar (SHQ)315 bar (SKQ)
