System
It jet-spiral oil on top of the
surface of a bed filter inside a vacuum housing -the oil's surface areas
become larger while falling down slowly inside the vacuum housing -the
vacuum housing is kept at -0.06Mpa with a vacuum pump -it removes the
moisture away from the surface of oil when the dry air blows on oil in
this conditions -the moist air comes out from the outlet of the vacuum
pump -The same conditions as the washed clothes become dry.

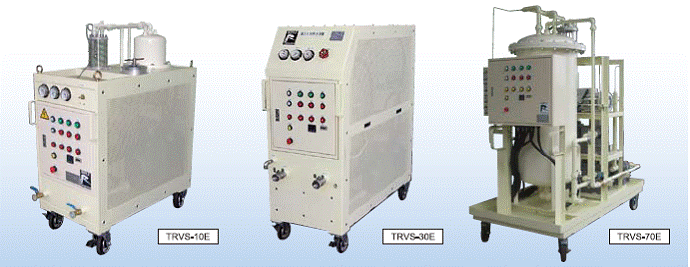

Model / Specifications |
||||||
---|---|---|---|---|---|---|
Model | Article nr | Motor | Flow rate | In / Out | Dimensions | Weight |
TRVS-10E TRVS-30E TRVS-70E |
17505 17510 17520 |
3ph-200Vx3 50/60Hz |
9.0/10.8 l/m 18.0/21.6 l/m 70l/min |
3/4"//1/2 1' 1/4//1"1/4 2"//1"1/2 |
550x1091x1527 570x1442x1516 1050x2050x2350 |
260 kg 380 kg 1250 kg |
Above mentioned model are our standard models.
Contact local distributor for custom made solutions.
