Guide Cylinders

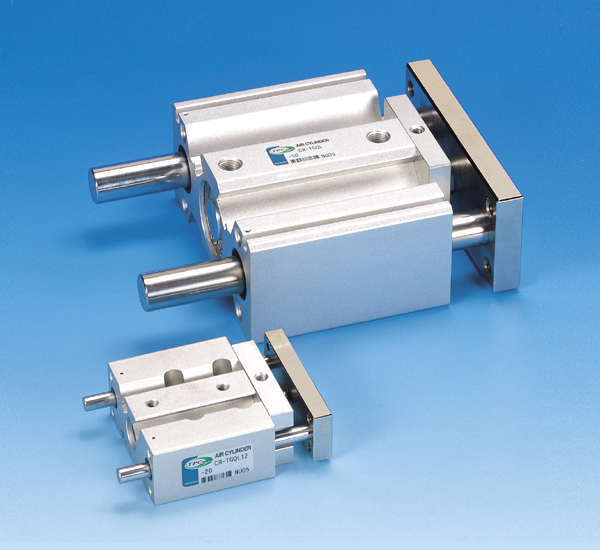

AG Guide Cylinder


Bore Size(mm) : ф12(1/2 Nom), ф16(5/8 Nom), ф20(3/4 Nom), ф25(1 Nom), ф32(11/4 Nom), ф40(11/2 Nom), ф50(2 Nom), ф63(21/2 Nom), ф80(31/4 Nom), ф100(4 Nom)
  • COMPACT SLIM BODY GUIDE CYLINDER
  • 10 BORE SIZES
  • MULTIPLE MOUNTING OPTIONS
  • FLUSH MOUNTING-AUTO SWITCH
  • AVAILABLE WITH BALL BEARING BUSHINGS
  • LOW BREAKAWAY
  • DESIGNED FOR NON-LUBE APPLICATIONS
  • HIGH LOAD BEARING CHARACTERISTICS

General Characteristic Download PDF (1.090,1 Kb)

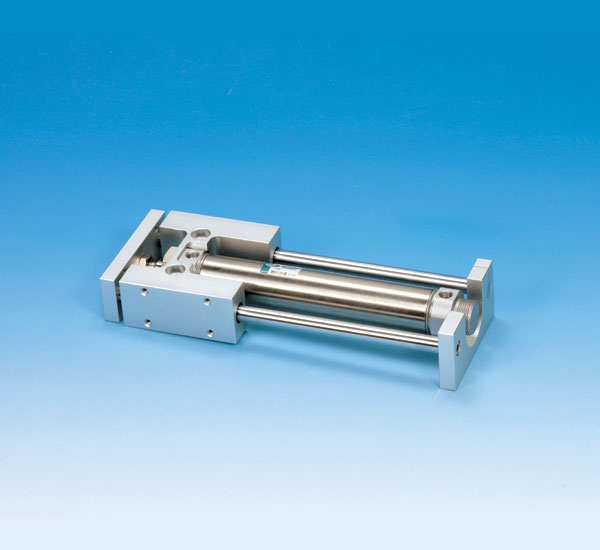

AGX Guide Cylinder


Bore Size : ф20, ф25, ф32, ф40
  • COMPACT INTEGRATION OF AGX/GX SERIES CYLINDER WITH GUIDE RODS. THE LINEAR TRANSFER UNIT RESISTS LATERAL LOADING AND PROVIDES PRECISE, NON-ROTATING MOTION.
  • THE AGX/GX SERIES IS EQUIPPED WITH A STANDARD MAGNET FOR AUTO SWITCH CAPABILITY
  • 2 GUIDE RODS OFFER HIGH NONROTATING ACCURACY.

General Characteristic Download PDF (499,2 Kb)

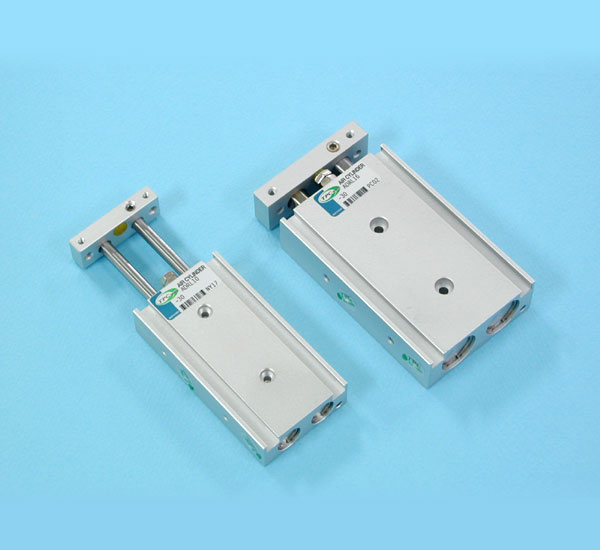

ADR Guide Cylinder


Bore Size : ф10, ф16, ф20, ф25
  • HIGH LATERAL LOAD CAPABILITY
  • ADJUSTABLE STROKE IS AVAILABLE
  • A THIN AND COMPACT DOUBLE ROD CYLINDER
  • BALL BUSHING OPTION
  • AUTO SWITCH READY
  • NON-LUBE SERVICE STANDARD.

General Characteristic Download PDF (749,8 Kb)

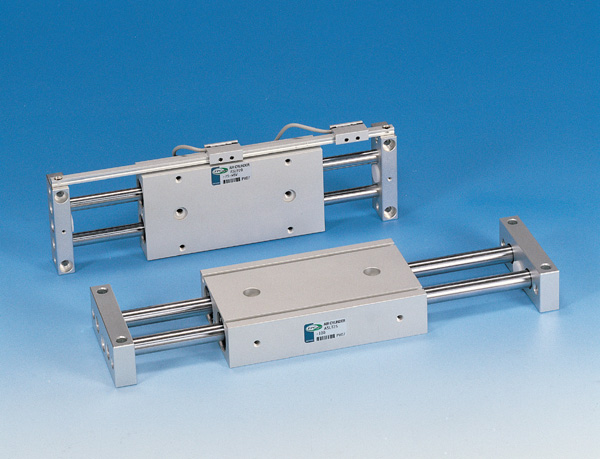

ASL Guide Cylinder


Bore size : ф12, ф16, ф20, ф25, ф32
  • ENSURE HIGH POSITIONAL ACCURACY
  • AUTO SWITCH CAN BE INSTALLED
  • COMPACT TYPE
  • SMOOTH OPERATION AND HIGH THRUST
  • MOUNTABLE BY THE HOUSING OR THE PLATE

General Characteristic Download PDF (2.068,4 Kb)

UAG Guide Cylinder


Bore Size(mm) : ф12(1/2 Nom), ф16(5/8 Nom), ф20(3/4 Nom), ф25(1 Nom), ф32(11/4 Nom), ф40(11/2 Nom), ф50(2 Nom), ф63(21/2 Nom), ф80(31/4 Nom), ф100(4 Nom)
  • COMPACT SLIM BODY GUIDE CYLINDER
  • 10 BORE SIZES
  • MULTIPLE MOUNTING OPTIONS
  • FLUSH MOUNTING-AUTO SWITCH
  • AVAILABLE WITH BALL BEARING BUSHINGS
  • LOW BREAKAWAY
  • DESIGNED FOR NON-LUBE APPLICATIONS
  • HIGH LOAD BEARING CHARACTERISTICS

General Characteristic Download PDF (1.090,1 Kb)
