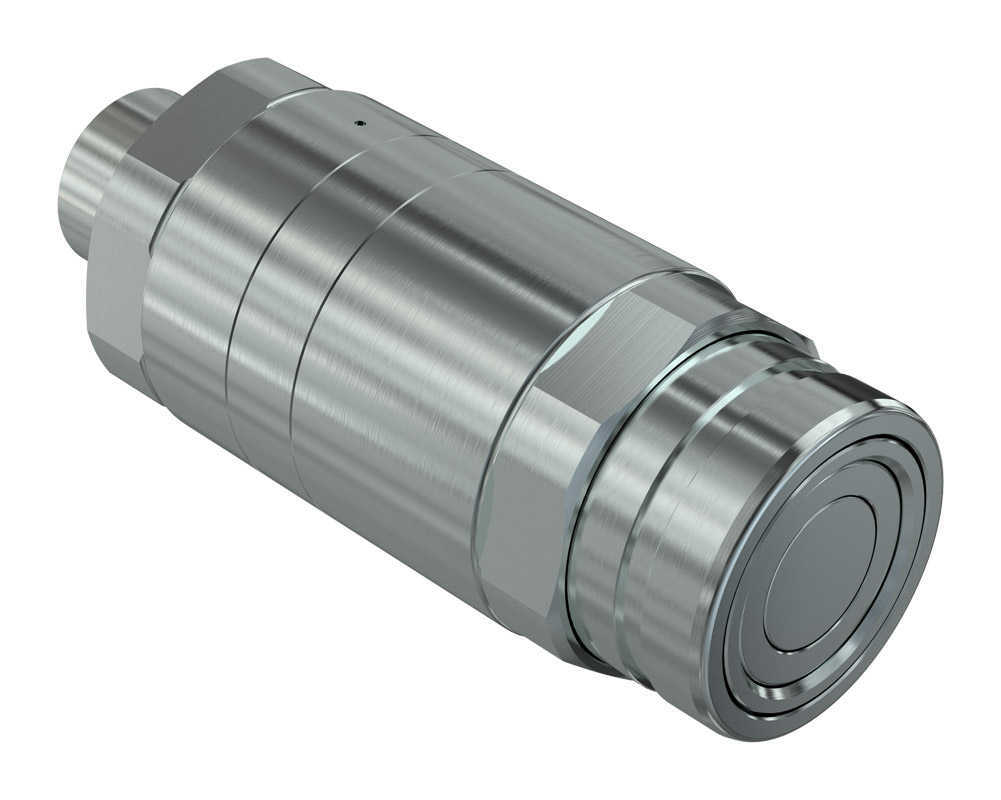

FPI - 5FPI

Flat face coupling for agriculture application, for Power Beyond system.
General Characteristic Download PDF (44,5 Kb)

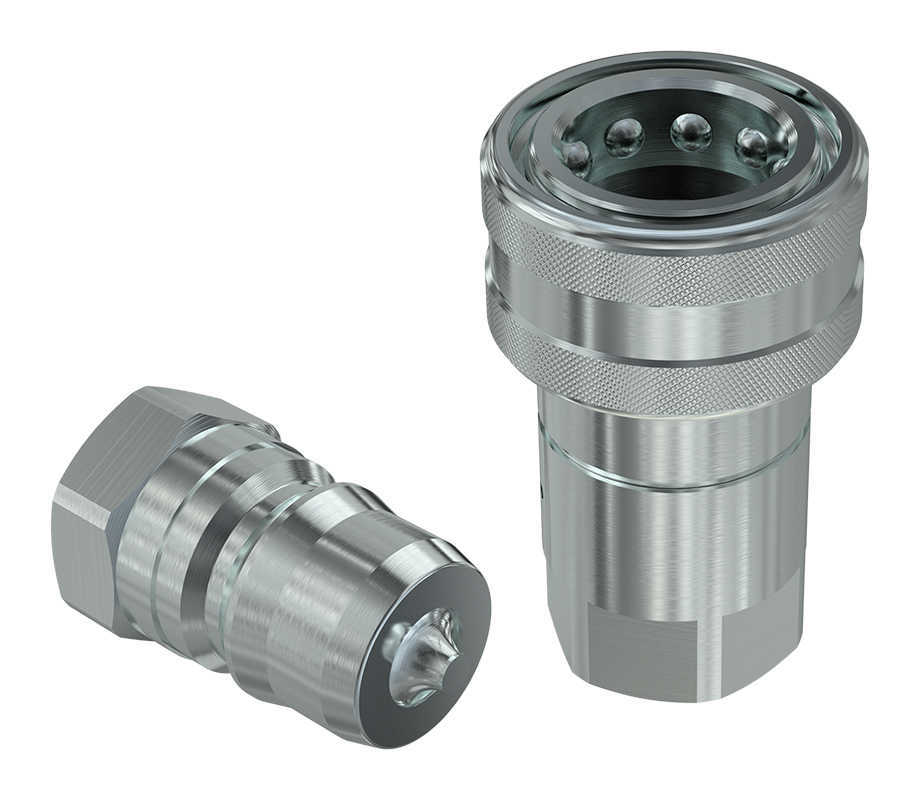

HNV

Standard couplings for industrial applications, ISO 7241-B interchange

Standard couplings for industrial applications. Complete range of sizes from 1/8" to 2" (with BSP, NPT and SAE female threads) available. ISO 7241 part B interchange.
General Characteristic Download PDF (352,7 Kb)

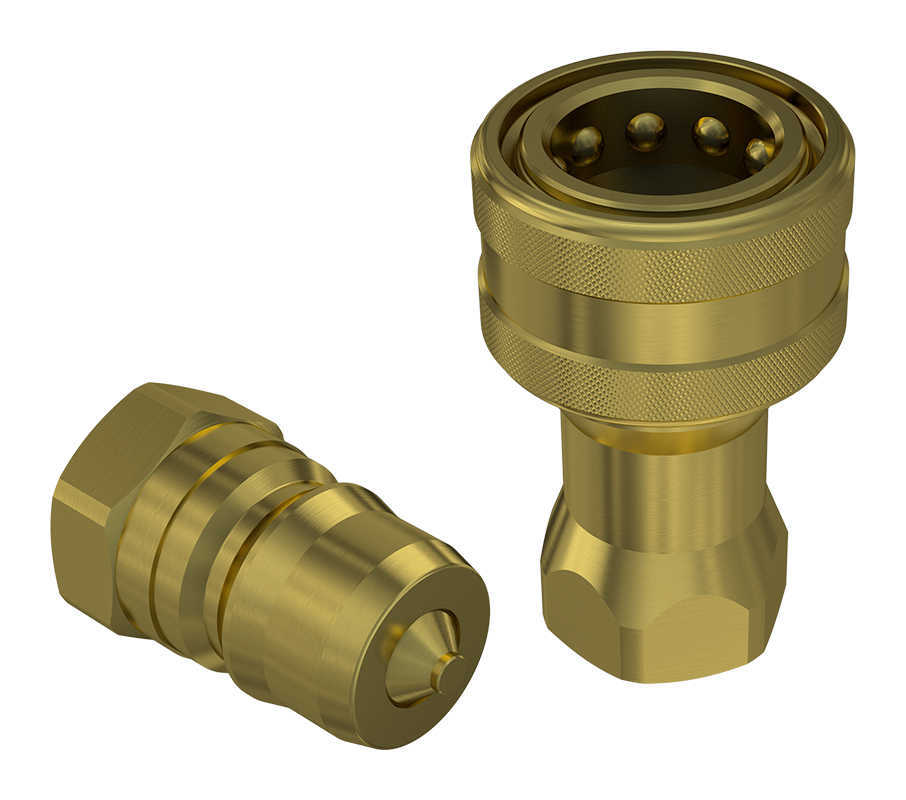

HNV brass

Standard couplings for industrial applications, ISO 7241-B interchange, brass versions

Standard couplings for industrial applications with brass components. Available with NBR or Viton seals. ISO 7241 part B interchange.
General Characteristic Download PDF (357,4 Kb)

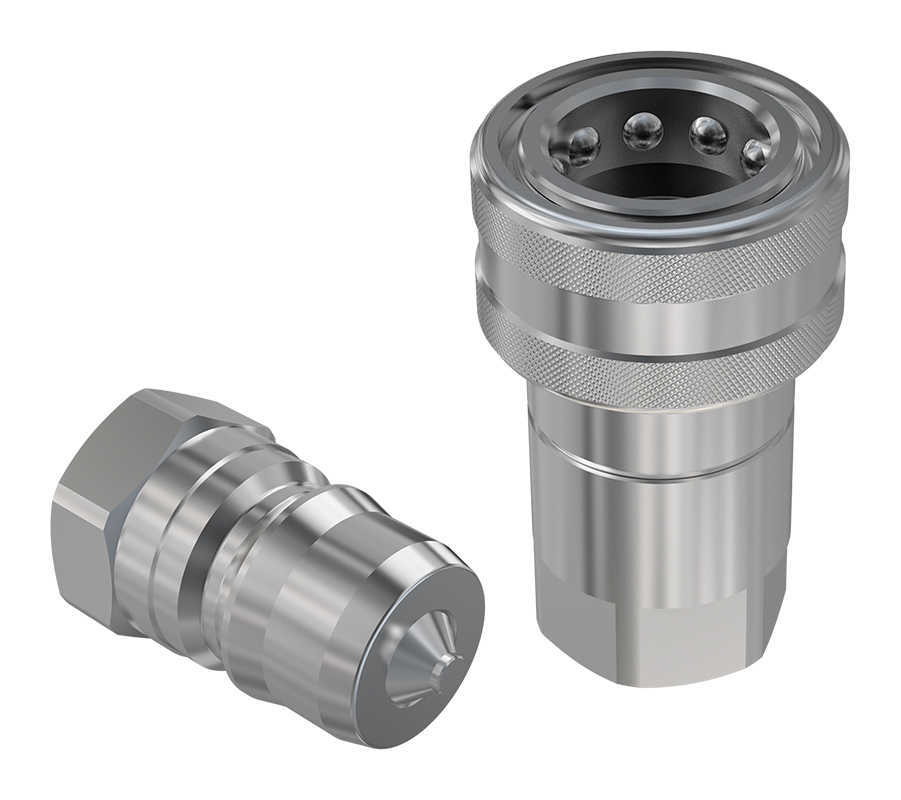

HNV stainless steel

Standard couplings for industrial applications, ISO 7241-B interchange, stainless steel versions

Standard couplings for industrial applications with stainless steel components (AISI 316) and Viton seals. ISO 7241 part B interchange.
General Characteristic Download PDF (328,9 Kb)

HNVFR

Standard couplings for industrial applications, ISO 7241-B interchange, BOP certified

Special version derived from HNV couplings purposely designed for BOP applications and API certified. Interchangeable according to ISO 7241-B standards.
General Characteristic Download PDF (271,9 Kb)

HNVN

Standard couplings for industrial applications, Japanese market interchange

Standard couplings for industrial applications, interchangeable for Japanese market.
General Characteristic Download PDF (251,7 Kb)

NL

Standard couplings free flow. Faster interchangeability (except size 12,5)

NL couplings represent the free-flow version of NV series products. Purposely designed without internal valves to increase the flow rate minimizing the pressure drop.
General Characteristic Download PDF (195,1 Kb)

NS

Standard couplings with ball valve. Faster interchangeability (except size 12,5)

Standard couplings for general purpose applications with ball valve shut-off system. Faster proprietary profile ( 1/2" size only is interchangeable according to ISO 7241 part A).
General Characteristic Download PDF (277,7 Kb)

NV

Standard couplings with poppet valve. Faster interchangeability (except size 12,5)

Standard couplings for general purpose applications with poppet valve shut-off system. Faster proprietary profile ( 1/2" size only is interchangeable according to ISO 7241 part A).
General Characteristic Download PDF (347,9 Kb)

OVG

Screw to connect couplings for oil & gas application, market interchange

Standard screw-to-connect coupling suitable for Oil & Gas applications. Robust sleeve design, poppet valve and ACME connection thread.
General Characteristic Download PDF (272,9 Kb)
