Couplings

3CFHF

Push-pull female couplings for agriculture with higher flow rate, up to 250 l/min

Push-pull coupling for high flow rate applications, connectable with male under residual pressure. Breakaway function. Can be screwed directly into valve ports or rigid pipes. ISO 7241 part A interchange. Flow rate up to 250 l/min.

General Characteristic Download PDF (304,8 Kb)

3CKHF

Compact push-pull female couplings for agriculture with higher flow rate, up to 250 l/min

Compact push-pull coupling for application with higher flow rate and limited space, connectable with male under residual pressure. Breakaway function. Can be screwed directly into valve ports or rigid pipes. ISO 7241 part A interchange. Flow rate up to 250 l/min. Reduced dimensions: 15 mm shorter than standard version.

General Characteristic Download PDF (294,4 Kb)

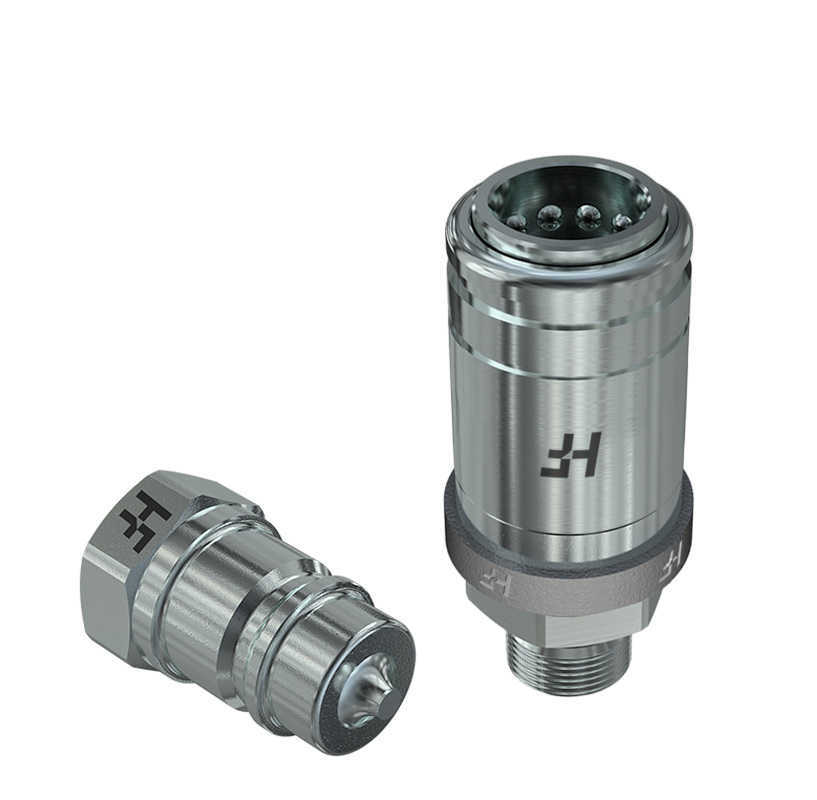

4SKHF

Compact push-pull female couplings for agriculture with higher flow rate, up to 250 l/min

Compact push-pull couplings for application with higher flow rate and limited space, connectable under residual pressure in both male and female side. Can be screwed directly into valve ports or rigid pipes. Breakaway function. ISO 7241 part A interchange. Flow rate up to 250 l/min. Reduced dimensions: 15 mm shorter than standard version.

General Characteristic Download PDF (312,3 Kb)

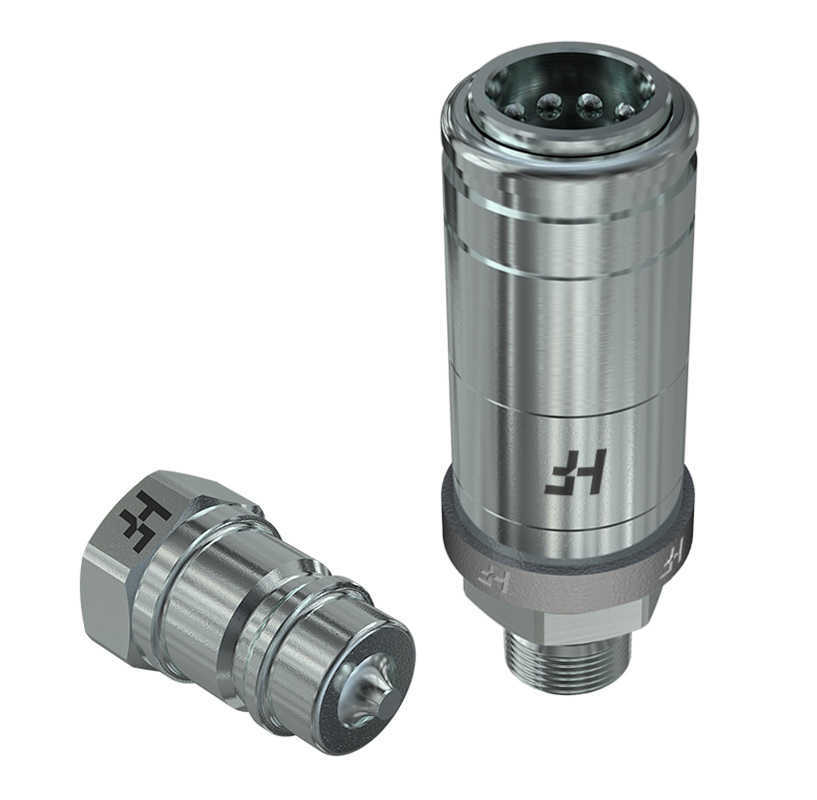

4SRHF

Push-pull female couplings for agriculture with higher flow rate, up to 250 l/min

Push-pull coupling for high flow rate applications, connectable under residual pressure in both male and female side. Can be screwed directly into valve ports or rigid pipes. Breakaway function. ISO 7241 part A interchange. Flow rate up to 250 l/min.

General Characteristic Download PDF (316,4 Kb)

UHP 100

Couplings for Ultra High Pressure applications (100 MPa series)

UHP couplings are the most advanced Faster solution for hydraulic applications with ultra high working pressures of 100 MPa and more. Very robust and reliable, they are characterized by redundant visual and mechanical safety systems.

General Characteristic Download PDF (332,0 Kb)

UHP 150

Couplings for Ultra High Pressure applications (150 MPa series)

UHP couplings are the most advanced Faster solution for hydraulic applications with ultra high working pressures of 150 MPa and more. Very robust and reliable, they are characterized by redundant visual and mechanical safety systems.

General Characteristic Download PDF (328,3 Kb)

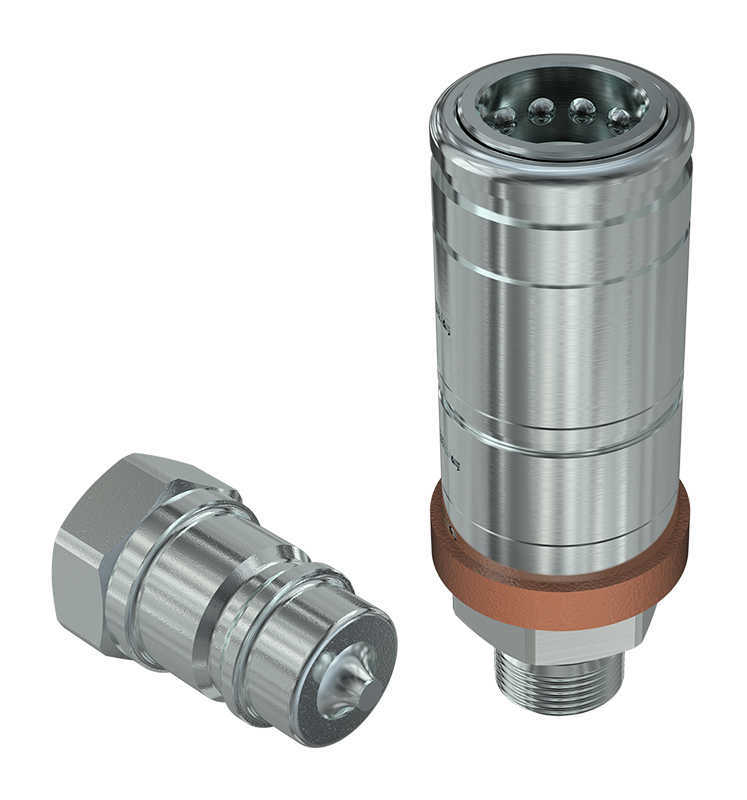

3CFPV

Push-pull female couplings for agriculture

Push-pull coupling, connectable with male under residual pressure. Breakaway function. Can be screwed directly into valve ports or rigid pipes. ISO 7241 part A interchange.

General Characteristic Download PDF (729,3 Kb)

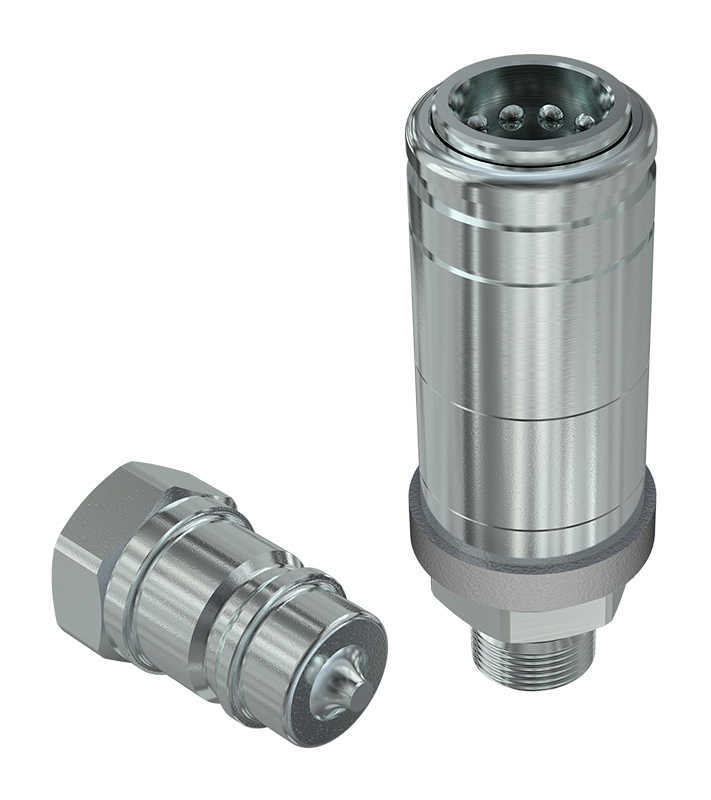

4SRPV

Push-pull female couplings for agriculture

Push-pull couplings, connectable under residual pressure in both male and female side. Can be screwed directly into valve ports or rigid pipes. Breakaway function. ISO 7241 part A interchange.

General Characteristic Download PDF (724,6 Kb)

FFH

Flat face couplings, ISO 16028 interchange, 35 MPa series

Flat-Face couplings with real maximum working pressure of 35 MPa and Zinc-Nickel plating. Flat valve shut-off system contributes to prevent contamination and spillage. ISO 16028 interchange. Size 1/8" has surface treatment in Mate 500 (CrIII) and it is not ISO interchangeable.

General Characteristic Download PDF (478,0 Kb)

FHV

Screw to connect flat face coupling

Screw-on flat face couplings, suitable to construction equipment and heavy duty applications. The Zinc-Nickel plating guarantees a remarkable resistance to corrosion. Connectable by hand up to 35 MPa residual pressure in the male half. No hose torsion during connection and disconnection thanks to the internal bearing system. Equipped with a safety sleeve to prevent accidental disconnections due to vibrations. Aluminum and pvc dust caps available. Faster proprietary profile.

General Characteristic Download PDF (353,6 Kb)
